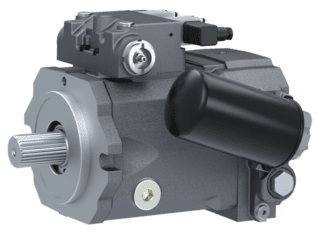

2x HPV 135-02 E1

Variable displacement pump

Details
2x HMV 280-02 E1

Variable displacement motor

Details
1x HPR 75-02 LP

Self-regulating pump

Details
1x VW14M3

Directional control valve

Details
1x iCon

Electronic control unit

Details

8 t
22 t
70 t
Contact
Back to overview
Facts
Linde Standard Product Portfolio

8 t - 70 t

Application Example

22 t

Equipment

2x HPV 135-02 E1 (travel circuit pumps)
2x HMV 280-02 E1 (travel circuit pumps)
1x HPR 75-02 LP (working hydraulics pump)
1x VM14M3 (working hydraulics)
1x iCon (electronic control unit)

Vorteile
  • Hydrostatic drive system without splitter, gearbox and manual gearbox
  • Infinitely variable
  • Precise, controlled even travel
  • Wear-free steering
  • Extremely robust and durable series 02 units
  • Precise results
  • Low consumption

Dozer

The robustness and durability of all series 02 components makes them a reliable drive technology solution for heavy machinery in the toughest conditions, as demonstrated by this example of a bulldozer. In addition, Linde components also help you to realise ambitious targets when it comes to fuel consumption and ease of operation, even at full load.

The machine operator simply sets the desired speed with the joystick and the electronic controller ensures even, straight travel. A control circuit has been developed for this purpose, as the following diagram shows. Two identical drivetrains consisting of a variable displacement pump and a variable motor each supply one side of the bulldozer. The speed of the motors is constantly monitored by speed sensors. If different ground conditions, obstacles, and other factors require an adjustment to the rotational speed or torque, the relevant units are controlled in relation to the current situation and the speeds of the two drivetrains are coordinated.

Individual control of the drivetrains also allows precise turning curves to be achieved, right through to turning on the spot without increased risk of wear to the brakes or chain.The motors are extremely robust when it comes to rapid angular acceleration, which makes them immune to tracks which skip a tooth on the sprocket.

Thanks to the large spread of the hydrostatic power train, there is no need for a manual gearbox and the machine can be driven stepless from standstill through to high speeds. The optimal traction means that thrust performance is always constantly high, even during cornering. Fuel consumption is comparatively low, even at full load. The high efficiency level of the hydrostatic drive units and an electronic power limit control ensure the diesel motor is working at favourable operating points all the time.
